US Standard 5KW 6KW Solar System Home Power with American ESS Split Phase Inverter

Name: US Standard 5KW 6KW Solar System Home Power with American ESS Split Phase Inverter
Brand: zzlysun
Price: 0.60 USD

Wholesale US Standard 5KW 6KW Solar System Home Power with American ESS Split Phase Inverter from china suppliers

Warranty : 5years

Free installation service : NO

Place of Origin : Henan, China

Brand Name : zzlysun

Model Number : 5KW/6KW

Application : Home

Solar Panel Type : Monocrystalline Silicon

Battery Type : Lead-Acid, Lithium Ion

Controller Type : MPPT

Mounting Type : Roof Mounting

Load Power (W) : 8KW, 6KW, 5KW, 10KW

Output Voltage (V) : 120/240V Split Phase

Output Frequency : 60Hz/50Hz

Work Time (h) : 24 Hours

Certificate : CE ROHS TUV IEC

Pre-sales project design : Y

Battery Voltage Range (V) : 40~58V

Max. Charging Current (A) : 210A

Max. DC Input Power (W) : 7.5KW/9KW

Rated Power : 5KW/6KW

PV Input Current (A) : 12A

No.of MPPT Trackers : 4

Output Frequency and Voltage : 50/60Hz

MPPT voltage range(V) : 120~500V

Ac output voltage(V) : 120/240(split phase), 208(2/3 phase),230 (single phase)

Battery type : lithium /Lead-acid

Packaging Details : Plywood Case

Port : Shanghai/Ningbo/Qingdao/Guangzhou

Supply Ability : 1000 Pallet/Pallets per Day

MOQ : 5000 watts

Price : $0.60/watts 5000-9999 watts

Contact Now

US Standard 5KW 6KW Solar System Home Power with American ESS Split Phase Inverter

❖ General mode：

When the PV is sufficient, the load is given priority to use, and the excess power is charged to the battery, and the excess power will be fed to the grid when the battery is full; when the PV is insufficient, the battery is discharged, and they will together meet the load; The electricity in the PV and the battery is not enough for the load, and it is supplemented by the large power grid;

Product List	5KW Hybrid Solar System	6KW Hybrid Solar System
PV module	455W Solar Panel*11pcs	455W Solar Panel*14pcs
PV Combiner Box	2 input 1 output	2 input 1 output
Hybrid Solar Inverter	5KW	6KW
Battery	Lithium battery or Lead Aid Battery
PV Cable	4mm2*200m
MC4 Connector	10pcs
Mounting System	Roof/Ground Mounting(Design for your requirement)
Installation tools	1pc

❖ Solar Panel

1.Power:445~470W

2.The quantity of Cell:144PCS
3.Solar cells size:166*83mm
4.Dimensions:2094x1038x35mm(LxWx H)
5.Open Circuit Voltage-Voc[V]:49.56V
6.Short Circuit Current-lsc[A]:11.32A
7.Max Power Voltage-Vmp[V]:41.21V
8.Max Power Current-lmp[A]:10.08A
9.Module Efficiency：20.47%

❖ Hybrid Solar Inverter

1. Rate Power: 5KW/6KW
2.Battery Voltage:40~58V
3.Battery Type：Lithium Battery /Lead Aid
4. MPP voltage range:120~500V
5. AC Voltage Regulation:Split phase, 2/3 phase, single phase

6. AC grid frequency:50Hz/60Hz
7. Max PV Power:7.5KW/9KW
8. Max. Efficiency :98.2%
9. Switch time：<20ms
10.No. of MPP trackers:4pcs
11.Max. input current per MPP tracker:12A

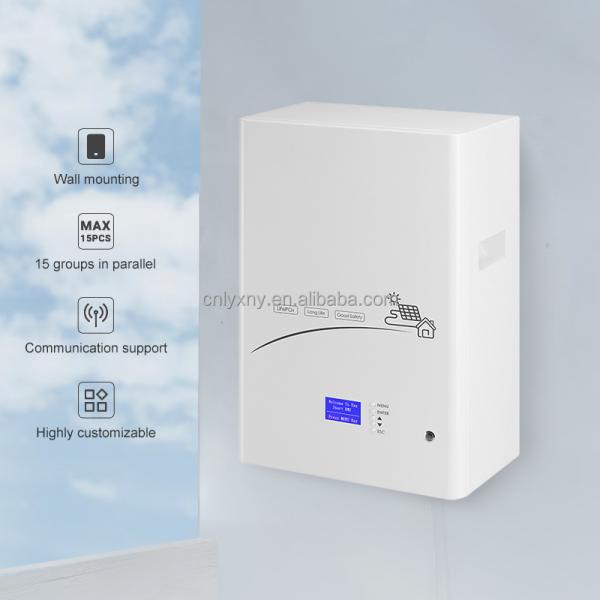

❖ Lithium Battery

1. Nominal Voltage:51.2V

2. Capacity:200Ah
3. Energy:10240Wh
4. Cycle Life:
≥5000 cycles @ 80% DOD, 25℃, 0.5C
≥4000 cycles @ 80% DOD, 40℃, 0.5C
5. Design Life:≥10 years
6. Charge Cut-off Voltage:56.0V±0.5V
7. Dimensions:680 x485 x180(220)mm
8. Weight:Approx:98kg

❖ Accessories

1. PV Combiner Box
(Anti-reverse/SPD/Fuse/Busbar/Breaker 63A1000V)

2. Installation tolls
（Wire Crimper, Stripper, MC4 Connector Wrench）

❖ Accessories

3. MC4 Connector
Rated current: 30A Rated voltage: 1000VDC

4. PV DC Cable
4mm2 or 6mm2

❖ Mounting Bracket

1. Good Appearance
2.Easy and flexible installation.

3.Diversified design
4.Light dead-weight
5.Save installation materials

❖ Advantage

The hybrid soar system are suitable for the country,which are the payment bill is expensive .The charging and discharging time of the battery is set.When the local grid price is in the peak stage ,the battery is discharged to the load,when the local grid price is in the trough stage,the battery will be charged by the power grid.

❖ Plywood Package

The on grid solar system ,off grid solar system and hybrid solar system will be packaged with plywood Case in order to avoid the damage from the transportation.Any special requirement about the package,pls advice us in advance!

❖ Company

The company has been committed to customer requirement as a guide to achieve win -win cooperation since its establishment.We are focus on the on grid solar system ,off grid solar system ,hybrid solar system of home use and Commercial solar system .All your requirement can contact us directly, we can provide the pre-sale service,quotation and after service,warmly welcome your come!

❖ Quality gurantee

The solar panel should be implement the strict quality control,such as Glass uplifting,EVA Slitting,IV test,Cleaning and so on.For that,the quality can be higher guarantee.

❖ Certificate

1.The solar panel will past the certificate ,such as ISO,TUV,IEC,BIS ,CQC.

2.The solar inverter certificate is depend on the different brand,the accurate certificate will be provided by us if you can contact with us directy.

FAQ

1.What kind of product can you provide ?
Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.

2.How much power energy can your company provide?
Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.

3.Who is your service customer?
Re:Individual client for house solar systems; distributor; importer and solar energy system installer.

4.What is your warranty and after-sales policy?
Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem,will let us freely.

5.How many days will the product delivery?
Re:All the package will shipped within 10~20 working days after your deposit of payment.
